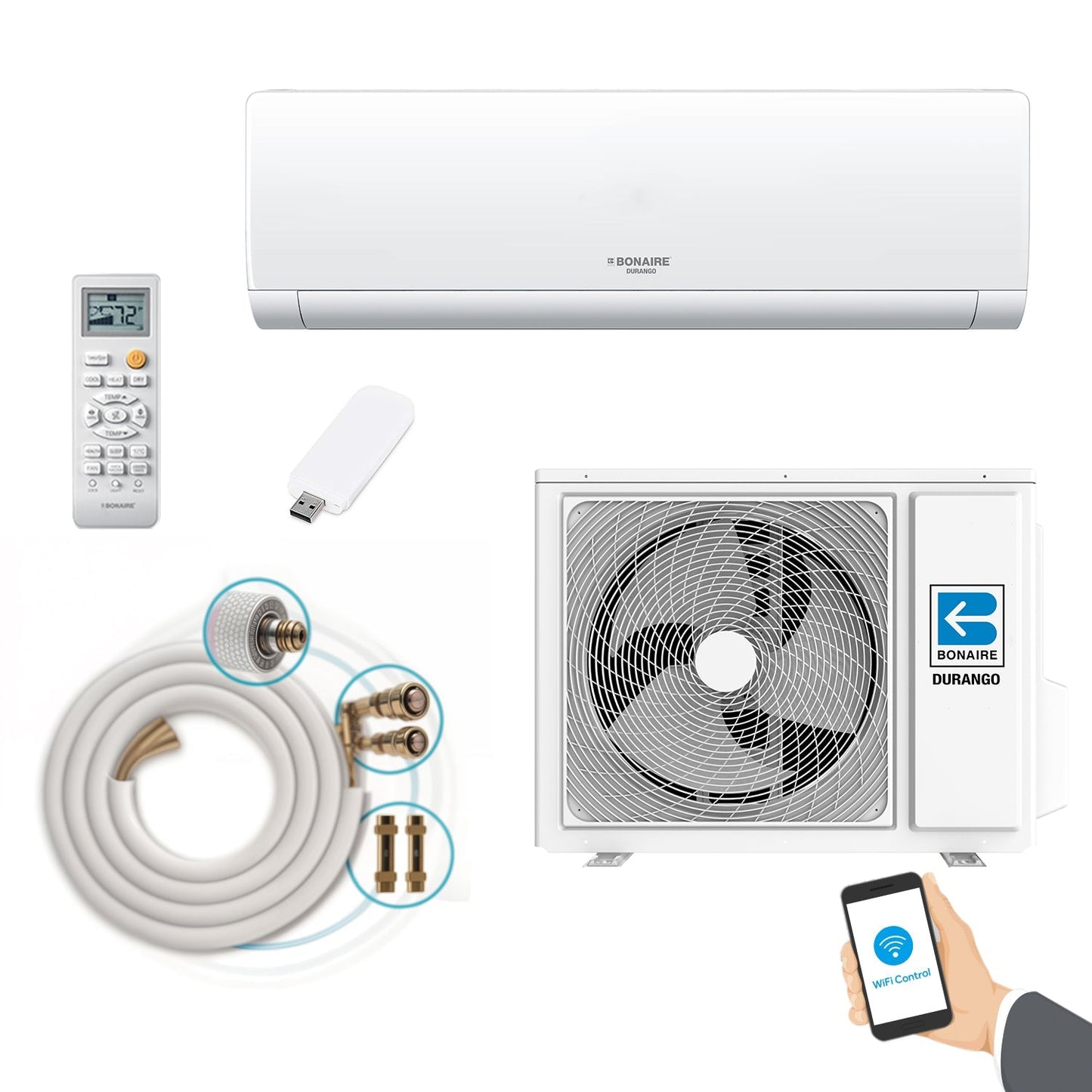

Bonaire Durango Ductless Split Air Conditioner 24000 BTU - CRC7000024O
Specifications:
Model Name |
System |
24000 BTU |
Outdoor |
CRC7000024O |
Indoor |
CRC7000024I |
Cooling |
Rated Capacity (Btu/hr) |
22,000 |
Capacity Range (Btu/hr) |
6500-28600 |
Rated Power Input (W) |
2163 |
SEER2 |
19.5 |
EER2 |
12.0 |
Moisture Removal (Pt./h) |
7.0 |
Heating |
Rated Heating Capacity 47°F (Btu/hr) |
27,600 |
Heating Capacity Range (Btu/hr) |
6800-34800 |
Rated Power Input (W) |
2687 |
HSPF2 |
9.5 |
Operating Range |
Cooling °F(°C) |
5~115(-15~46) |
Heating °F(°C) |
-4~75(-20~24) |
Power Supply |
Voltage, Cycle, Phase V/Hz |
208/230/60 |
Outdoor Unit |
Maximum Fuse Size A |
30 |
Minimum Circuit Amp A |
20 |

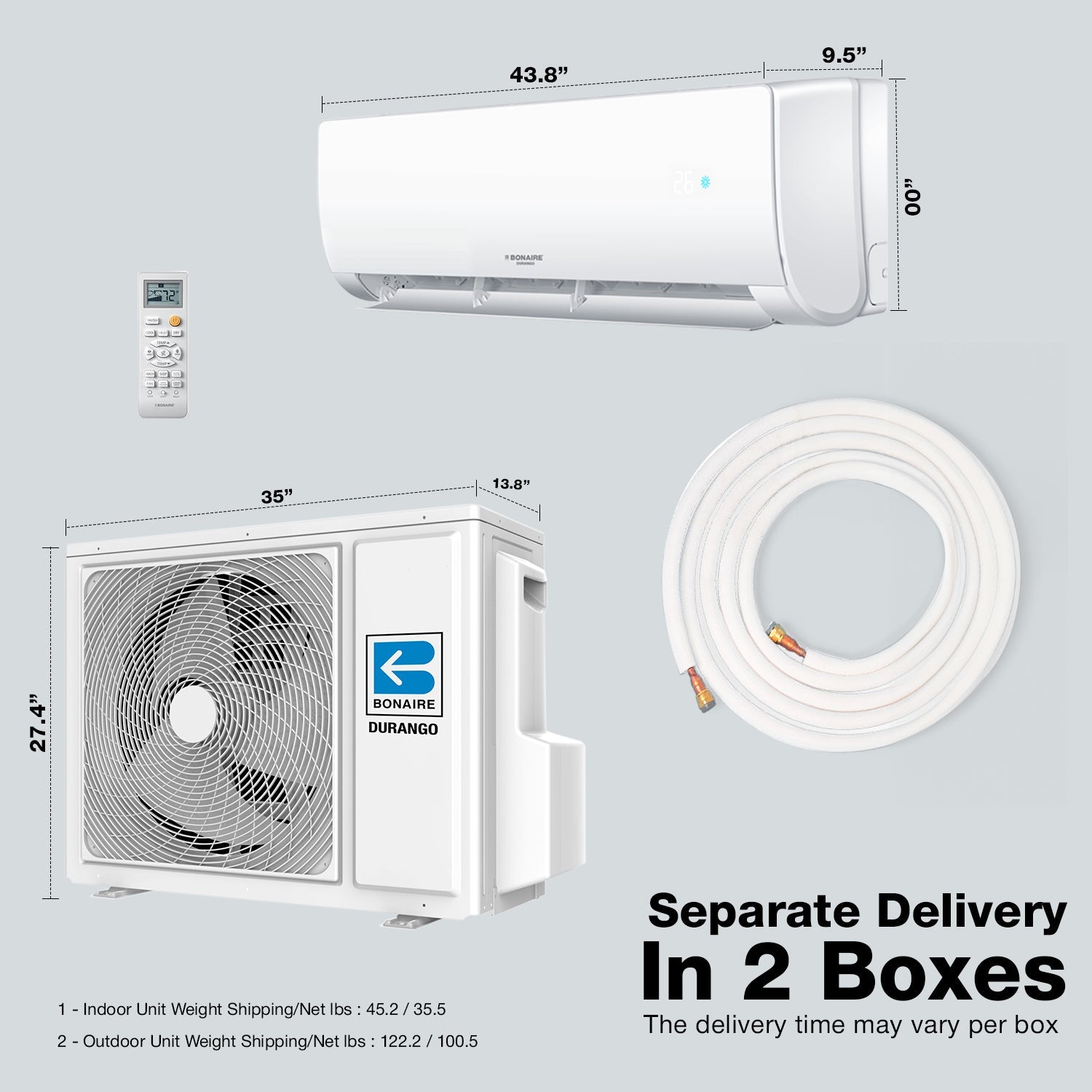

Dimension: Height in (mm) |
30 (762) |
Dimension: Width in (mm) |
36 3/16 (920) |
Dimension: Depth in (mm) |
15 1/8 (385) |
Weight (Ship/Net)- lbs |
157.1/130 |

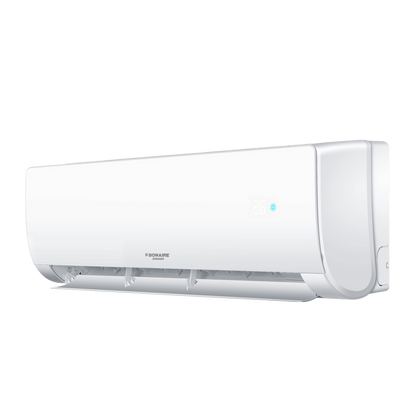

Indoor Unit |
Fan Speed Stages |
5 + Auto |
Airflow (Turbo/High/Med/Low/Quiet) CFM |
635/575/480/390/355 |
Dimension: Height in (mm) |
13 1/4 (336) |
Dimension: Width in (mm) |
43 7/8 (1115) |
Dimension: Depth in (mm) |
9 9/16 (243) |
Weight (Ship/Net)- lbs |
47.9/38 |
Refrigerate Line |
Connections |
Flare |
Liquid O.D. in |
1/4 |
Suction O.D. in |
1/2 |
Factory Charge Oz |
74.07 |
Line Length Ft / m |
25/7.5 |
Product Guides & Warranty Details
Download Product User Manual
What Our Experts Think
-
Powerful Cooling Capacity – The Bonaire Durango Ductless Split Air Conditioner delivers 24,000 BTU of cooling power, making it perfect for cooling larger rooms or spaces. This unit efficiently cools living areas, open-plan offices, or even small homes, ensuring comfort during hot weather.
-
Ductless System for Easy Installation – With its ductless design, this air conditioner avoids the need for complex and costly ductwork, offering a streamlined installation process. The split system is ideal for spaces where traditional ducted systems are not feasible.
-
Energy Efficient – Designed to minimize energy consumption, the Bonaire Durango 24,000 BTU unit provides effective cooling without a significant increase in energy bills. It’s an energy-conscious option for those looking to maintain comfort while keeping electricity costs under control.
-
Quiet Performance – The Durango air conditioner operates quietly, ensuring that cooling doesn’t disrupt your daily activities or rest. It’s a great choice for bedrooms, living rooms, or office environments where noise reduction is essential.
-
User-Friendly Controls – Featuring an intuitive remote control, the system allows you to easily adjust the temperature, fan speed, and cooling modes. The simple control options provide a personalized and hassle-free cooling experience.
-
Flexible Installation – This unit offers multiple installation options, allowing you to position the indoor unit where it’s most effective for your space. Whether mounted on the wall or another location, the Durango unit adapts to your needs.
-
Air Filtration for Cleaner Air – The air conditioner includes an integrated air filter that helps remove dust, allergens, and pollutants from the air, improving overall air quality. This feature ensures that your space remains both cool and clean.
-
Modern Design – With a sleek, compact design, the Bonaire Durango unit blends seamlessly into a variety of interior styles. It offers a modern look while maintaining functionality, complementing both contemporary and traditional room aesthetics.
Q&A
Q: What is the Bonaire Durango Ductless Split Air Conditioner 24000 BTU?
A: The Bonaire Durango Ductless Split Air Conditioner 24000 BTU is a powerful cooling system designed to efficiently cool larger spaces without the need for ductwork. With 24,000 BTUs of cooling capacity, it's ideal for cooling large rooms or open-plan areas.
Q: How does the Bonaire Durango Ductless Split Air Conditioner work?
A: This air conditioner features a split-system design, with an indoor unit that circulates cool air throughout the room and an outdoor unit that handles the heat exchange process. The two units are connected via refrigerant lines, offering efficient, quiet cooling.
Q: What are the key features of the Bonaire Durango Ductless Split Air Conditioner 24000 BTU?
A: Key features include 24,000 BTUs of cooling power, energy-efficient operation, quiet performance, and easy installation. The system is designed to cool larger spaces efficiently, with customizable temperature control for optimal comfort.
Q: What size room is the Bonaire Durango Ductless Split Air Conditioner 24000 BTU suitable for?
A: The 24,000 BTU capacity is ideal for larger rooms or open spaces, typically between 600 to 1,000 square feet, depending on factors like insulation, room layout, and sunlight exposure.
Q: Is the Bonaire Durango Ductless Split Air Conditioner energy-efficient?
A: Yes, the Bonaire Durango is designed for energy-efficient operation. The ductless system reduces energy loss associated with traditional systems and provides focused cooling to specific areas, making it a more cost-effective solution.
Maintenance Tips
-
Clean the Air Filters: Regularly clean or replace the filters to ensure smooth airflow and improve the air quality.
-
Check the Condenser Coils: Inspect and clean the condenser coils to prevent dirt and debris buildup, which can impact cooling efficiency.
-
Clear the Drain Line: Ensure the drain line is clear to prevent water buildup and leakage.
-
Maintain the Indoor Unit: Wipe down the indoor unit to remove dust, dirt, and any blockages that may hinder airflow.
-
Check Refrigerant Levels: Have the refrigerant levels checked and topped off by a professional to ensure optimal performance.
-
Inspect the Outdoor Unit: Clear the outdoor unit of any obstructions such as leaves, branches, or dirt to maintain airflow and prevent overheating.
-
End-of-Season Care: Clean the system thoroughly at the end of the cooling season, and store it properly to prepare for next season.
